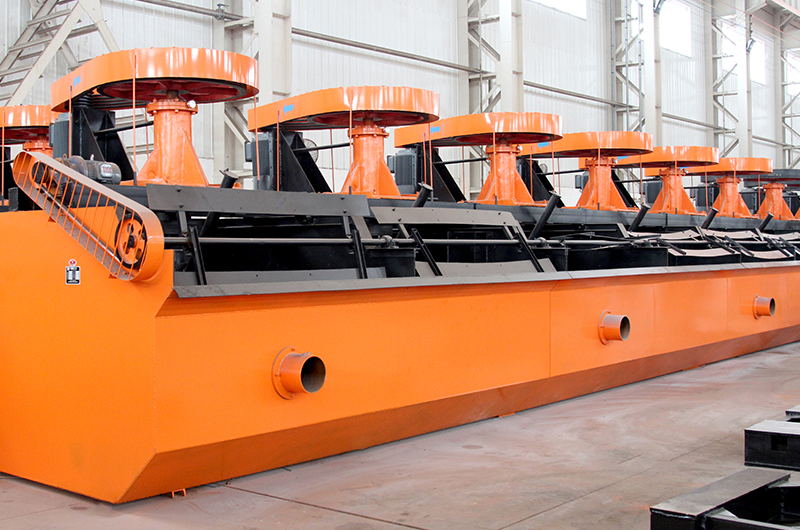

Flotation machine

Flotation machine

Capacity 0.2–20m³/min

Rotation speed 180-483 r/min

Exported Countries United States, Turkey, Laos, United Kingdom, Brazil, United Arab Emirates, Indonesia, Mexico, South Africa, Tanzania, Botswana, Uganda, Cote d'Ivoire, etc.

Applied Materials Non-ferrous metal ore such as gold, copper, lead, zinc, etc., black metal ore like manganese, chrome, non-metallic ore like talc, feldspar, zeolite, etc.

Get Quote Get latest Price
Service：

7*24 Online/ Free Customized Design/The Latest Price List/Fast Shipping from China/Full Tech Support/After-sale Service

Introduction

Flotation machine, also called flotation cell, is the equipment to complete the flotation process. It is widely used for the rough, fine and reverse flotation operations of copper ore, lead ore, zinc ore, nickel, molybdenum and other non-ferrous metal, ferrous metal and nonmetal minerals. The types of flotation machine mainly include mechanical agitation flotation machine and froth agitation flotation machine.

Advantages

High flotation efficiency

Power saving, low production cost.

Simple structure, easy installation and operation.

Different kinds of mineral separation, high availability.

Applications

Mining Chemical industry Non-ferrous metal mine Mineral Processing Industry Separating of gold, silver, copper, Lead (Pb), Zinc (Zn), etc.

Customer Cases

  • 75 t/h Flotation Machine Plant in India

    75 t/h Flotation Machine Plant in India

    Materials: : Copper Ore

    Model: : SF-20

    Input size: : 3mm

    Output size: : 200 mesh

Technical Data

Category Specification
Model		 Effective
cubage
（m³）		 Processing
capacity
（m³/min）		 Main shaft     loam board Dimensions
(L×W×H)
（m）		 Single
 trough
Weight
（t）
Power
（kw）		 Rotate
speed
（r/min）		 Rotate
 speed
（r/min）		 Power
（kw）
XJK type
flotation
machine		 XJK-0.35 0.35 0.18-0.4 1.5 483 25 1.1 0.7×0.7×0.7 0.5
XJK-0.62 0.62 0.3-0.9 3.0 400 25 1.1 0.90×0.82×0.85 1.0
XJK-1.1 1.1 0.6-1.6 5.5 330 25 1.1 1.1×1.1×1 1.4
XJK-2.8 2.8 1.5-3.5 11 280 25 1.1 1.75×1.6×1.1 2.5
XJK-5.8 5.8 5-7 22 240 25 1.5 2.2×2.2×1.2 3.6
SF type
flotation
machine		 SF-0.37 0.37 0.2-0.4 1.5 386 25 1.1 0.7×0.7×0.75 0.5
SF-0.7 0.7 0.3-0.9 3 400 25 1.1 0.9×0.82×0.95 1.0
SF-1.2 1.2 0.6-1.6 5.5 330 25 1.1 1.1×1.1×1.1 1.9
SF-2.8 2.8 1.5-3.5 11 268 25 1.1 1.75×1.6×1.15 2.6
SF-4 4 2-4 15 220 25 1.5 1.85×2.05×1.2 2.9
SF-8 8 4-8 30 191 25 1.5 2.2×2.9×1.4 4.2
SF-10 10 5-10 30 191 25 1.5 2.2×2.9×1.7 4.5
SF-20 20 5-20 30×2 191 25 1.5 2.85×3.8×2 9.9
JJF type
flotation
machine		 JJF-2 2 1-3 7.5 443 25 1.5 1.4×1.4×1.1 1.7
JJF-4 4 2-4 11 305 25 1.5 1.6×2.15×1.25 2.4
JJF-8 8 4-8 22 233 25 1.5 2.2×2.9×1.4 4.5
JJF-10 10 5-10 22 233 25 1.5 2.2×2.9×1.7 4.9
JJF-16 16 5-16 30 180 25 1.5 2.85×3.8×1.7 8.0
JJF-20 20 5-20 37 180 25 1.5 2.9×3.8×2.0 10.5
Model KYF-1 KYF-2 KYF-3 KYF-4 KYF-8 KYF-16 KYF-24 KYF-38
Chute Dimensions Length（mm） 1000 1300 1600 1800 2200 2800 3100 3600
Width（mm） 1000 1300 1600 1800 2200 2800 3100 3600
Height（mm） 1100 1250 1400 1500 1950 2400 2900 3400
Single  effective Weight（t） 1.1 1.5 1.9 2.3 3.6 5.9 9.9 15.1
Effective cubage（m³） 1 2 3 4 8 16 24 38
Production Capacity calculated by slurry volume(m³/min) 0.2-1 0.4-2 0.6-3 1.2-4 3—8 4—6 4—24 10—38
Main shaft motor Model Y132M1-6 Y160M2-8 Y160L-8 Y180L-8 Y200L-8 Y250M-8 Y250M-8 Y280S-8
Power（kw） 4 5.5 7.5 11 15 30 30 37
Rotate speed(r/min) 960 720 720 970 730 730 730 740
Diameter（mm） 340 410 480 550 630 740 800 880
Height（mm） 215 256 300 340 390 460 — 545
Rotate speed(r/min) 281 247 219 200 175 160 150 138
Circular velocity(m/s) 5 5.3 5.5 5.76 5.77 6.7 6.25 6.36
Loam board motor Model Y90S-4 Y90S-4 Y90L-4 Y90L-4 Y90L-4 Y90L-4 Y90L-4 Y90L-4
Power（kw） 1.1 1.1 1.5 1.5 1.5 1.5 1.5 1.5
Rotate speed(r/min) 1400 1400 1400 1400 1400 1400 1400 1400
Loam board Rotate speed(r/min) 18 18 16 16 16 16 16 16
Diameter（mm） 500 500 580 600 600 700 700 500
Wind pressure of fan（kpa） ≥12.6 ≥14.7 ≥19.8 ≥19.8 ≥21.6 ≥25.5 ≥30.4 ≥34.3
Max. air injection amount(m³/㎡·min) 2 2 2 2 2 2 2 2
Model Trough cubage
（m³）		 Inside dimensions
（L×W×H）
（m）		 Air suction amount
（m³/㎡·min）		 Power
（kw）		 Motor model Processing capacity
（m³/min）		 Single trough weight
(t)
BF-0.37 0.37 0.74×0.74×0.75 0.9～1.05 1.5 Y90L-4 0.2～0.4 0.5
BF-0.65 0.65 0.85×0.95×0.9 0.9～1.10 3.0 Y132S-6 0.3～0.7 1.0
BF-1.2 1.2 1.05×1.15×1.10 1.0～1.10 5.5
4.0		 Y132M2-6
Y132M1-6		 0.6～1.2 1.4
BF-2.0 2.0 1.40×1.45×1.12 1.0～1.10 7.5 Y160M-6 1.0～2.0 1.8
BF-2.8 2.8 1.65×1.65×1.15 0.9～1.10 11 Y180L-8 1.4～3.0 2.2
BF-4.0 4.0 1.9×2.0×1.2 0.9～1.10 15 Y200L-8 2～4 2.6
BF-6.0 6.0 2.2×2.35×1.3 0.9～1.10 18.5 Y225S-8 3～6 3.3
BF-8.0 8.0 2.25×2.85×1.4 0.9～1.10 22
30		 Y225M-8
Y250M-8		 4～8 4.2
BF-10 10 2.25×2.85×1.7 0.9～1.10 22
30		 Y225M-8
Y250M-8		 5～10 4.7
BF-16 16 2.85×3.8×1.7 0.9～1.10 37
45		 Y280S-8
Y280M-8		 8～16 8.4
BF-20 20 2.85×3.8×2.0 0.9～1.10 37
45		 Y280S-8
Y280M-8		 10～20 8.7
BF-24 24 3.15×4.15×2.0 0.9～1.10 45 Y280M-8 12～24 9.2
Model XCF-1 XCF-2 XCF-3 XCF-4 XCF-8 XCF-16 XCF-24 XCF-38
Dimensions Length（mm） 1000 1300 1600 1800 2200 2800 3100 3600
Width（mm） 1000 1300 1600 1800 2200 2800 3100 3600
Height（mm） 1100 1250 1400 1500 1950 2400 10819 3400
Single Effective Weight（t） 1.2 1.7 2.3 2.7 3.9 6.6 8.0 16.8
Effective cubage（m³） 1 2 3 4 8 16 24 38
Production Capacity calculated by slurry volume(m³/min) 0.2—1 0.4—2 0.6—3 1.2—4 3—8 4—16 4—24 10—38
Main shaft motor Model Y132M2-6 Y160M-6 Y160L-6 Y180L-6 Y200L2-6 Y280S-8 Y280S-8 Y280S-6
Power（kw） 5.5 7.5 11 15 22 37 37 45
Impeller Rotate speed(r/min) 960 970 970 970 970 740 740 980
Diameter（mm） 400 460 540 620 720 860 950 —
Height（mm） 155 175 207 247 321 349 — —
Rotate speed(r/min) 358 331 266 215 185 160 153 —
Circular velocity(m/s) 7.5 7.5 7.5 7 6.97 7.6 7.6 7.4
loam board motor Model Y90S-4 Y90S-4 Y90L-4 Y90L-4 Y90L-4 Y90L-4 Y90L-4 Y90L-4
Power（kw） 1.1 1.1 1.5 1.5 1.5 1.5 1.5 1.5
Rotate speed(r/min) 1400 1400 1400 1400 1400 1400 1400 1400
loam board Rotate speed(r/min) 18 18 16 16 16 16 16 16
Diameter（mm） 500 500 580 600 600 700 700 700
Wind pressure of fan （kpa） ≥12.6 ≥14.7 ≥19.8 ≥19.8 ≥21.6 ≥25.5 ≥30.4 ≥34.3
Max. air injection amount(m³/㎡·min) 2 2 2 2 2 2 2 2

Company and Services

Specialized technical training and instructions

Tracking service, regular inspection equipment

Free technical advice and guidance

The lifelong service and spare parts for customers
